13227 - Surface-mounted canopy Smart velvet white for BEGA system pendant luminaires

Installation component – Surface-mounted canopy - Smart (Type B) for interior use. With integrated Smart DALI-Controller for controlling the luminaire with the BEGA Smart app.
For the mounting and electrical installation of a BEGA system pendant luminaire on any type of straight ceiling.
The canopy modernises existing electrical installations. It introduces professional light control into any building using the manufacturer-independent DALI interface standard. even if only older, three-core cables are installed.It also acts as a link between all components of the BEGA Smart system and allows all DALI luminaires and BEGA Zigbee lamps to be controlled remotely. Once successfully installed, the device is configured in the BEGA Smart app on a smartphone. The BEGA Smart app is available free of charge for iOS and Android.
Synthetic 2-piece line connector (clamp part with screw cap) for braided coaxial cables. With internal pressure spring and contact wire. For connecting one cable pendant 2x0,5mm² or 2x0.75mm². LED power supply unit in the canopy integrated. Supply voltage: 220-240V, 0/50-60Hz; Secondary: 700mA, 7-26W.
The canopy is suitable for controlling the following operating modes:
• On/off
• Dimming
• Group control
• Scenarios
Data matrix code for convenient configuration via smartphone.
Manufacturer: BEGA
Material: metal hanger and mounting plate, canopy made of synthetic material, finish velvet white

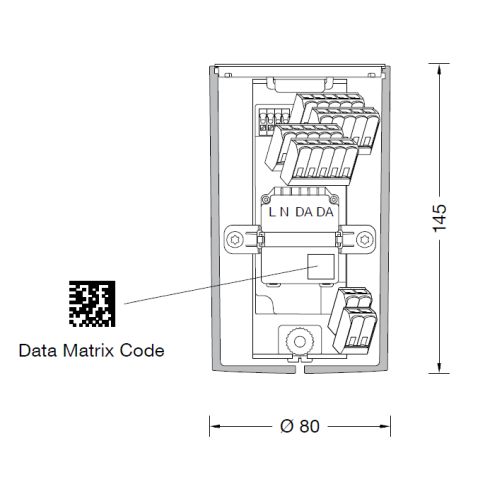

Dimensions (mm): Ø 80 x 145
Delivery time: 2 Weeks
