ERCO in-ground luminaires
Innovative Lighting for Any Setting
Designed to meet the demanding needs of modern architecture, Erco in-ground luminaires offer unmatched flexibility in lighting design. Whether for marking pathways, highlighting architectural details, or creating atmospheric accents, Erco enables you to create spaces that are not just seen but felt.
Technology Meets Design
Erco's in-ground luminaires combine advanced LED technology with minimalist design, seamlessly integrating into any environment. Their precise light distribution and exceptional color rendering reveal the true beauty of your outdoor space, while also impressing with their energy efficiency and longevity.
%

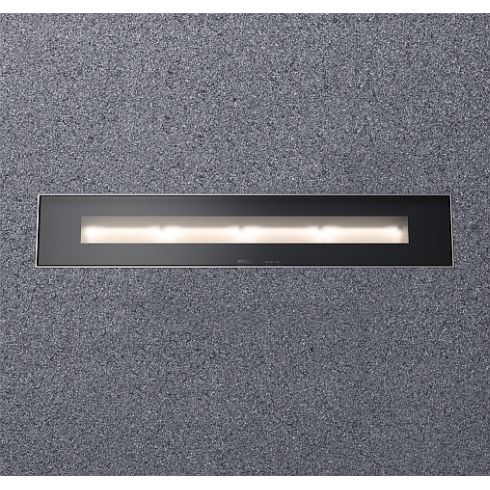

32808.000 SITE grazing light wallwasher In-ground luminaire
€1,485.00*
€1,618.40*
(8.24% saved)
SITE emphasises the tactile qualities of architectural materials: The grazing light wallwasher brings out the finest wood, concrete or brick texture as exquisitely as rough surfaces such as natural stone, thereby enabling the luminaire to set off historic features or regional materials. In contrast to conventional wallwashers which give walls a soft character, SITE adds an almost tactile dimension through high-contrast light and shadow effects. The luminaire can be tilted conveniently by up to 10° in both directions. With its asymmetrical light distribution, the grazing light wallwasher can be positioned up to 30cm close to the wall and still produce an exceptionally uniform beam. The resulting special rendering of vertical illuminance combines strikingly illuminated texture for scenic effect with efficient outdoor illumination. Asymmetrical light distribution for accentuated façade lighting. Vertical illuminance for brightening the surroundings and segmenting the exterior landscape. With covered mounting detail. If mounted in recessed housing it can be driven over by vehicles with pneumatic tyres, load 20kN. Manufacturer: ERCOLabeling: Good Design Award 2015Material: cover frame stainless steel, safety glass 10mm clear, housing plastic black, collimating lens made of optical polymerDimensions (mm): 445 x 120 x 121Illuminant: 24W LED 3000KLuminous flux (Lumen): 2400Scope of delivery: incl. illuminantDelivery time: 4-6 Weeks
%

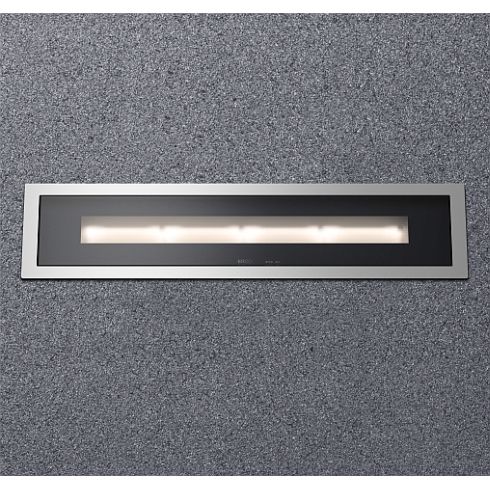

32810.000 SITE grazing light wallwasher In-ground luminaire
€1,485.00*
€1,618.40*
(8.24% saved)
SITE emphasises the tactile qualities of architectural materials: The grazing light wallwasher brings out the finest wood, concrete or brick texture as exquisitely as rough surfaces such as natural stone, thereby enabling the luminaire to set off historic features or regional materials. In contrast to conventional wallwashers which give walls a soft character, SITE adds an almost tactile dimension through high-contrast light and shadow effects. The luminaire can be tilted conveniently by up to 10° in both directions. With its asymmetrical light distribution, the grazing light wallwasher can be positioned up to 30cm close to the wall and still produce an exceptionally uniform beam. The resulting special rendering of vertical illuminance combines strikingly illuminated texture for scenic effect with efficient outdoor illumination. Asymmetrical light distribution for accentuated façade lighting. Vertical illuminance for brightening the surroundings and segmenting the exterior landscape. With flush mounting detail. If mounted in recessed housing it can be driven over by vehicles with pneumatic tyres, load 20kN. Manufacturer: ERCOLabeling: Good Design Award 2015Material: frame stainless steel, safety glass 10mm clear, housing plastic black, collimating lens made of optical polymerDimensions (mm): 418 x 93 x 121Illuminant: 24W LED 3000KLuminous flux (Lumen): 2400Scope of delivery: incl. illuminantDelivery time: 4-6 Weeks
%

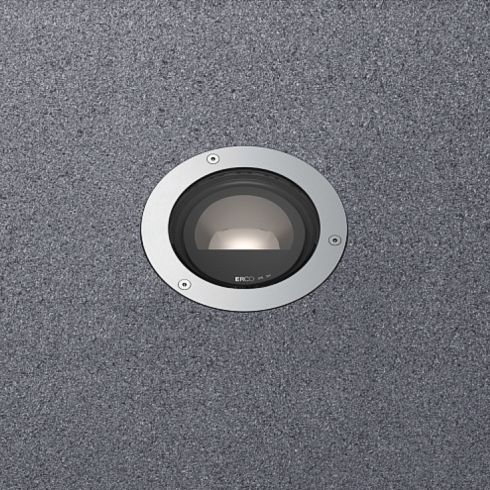

33409.000 TESIS uplight In-ground luminaire
€871.00*
€949.62*
(8.28% saved)
TESIS has long been a regular feature in the outdoor range. In a completely upgraded version, it now delivers an entirely new level of performance. Innovative photometrics ensure maximum brilliance and efficiency. A considerably flatter housing thanks to LED technology ensures exceptionally straightforward installation - in both round and square version. The robust plastic housing is fully corrosion-resistant and designed to ensure long life and ease of use. Uplight with Spherolit lens wide beam, optical cut-off 40°. Very wide beam, rotationally symmetrical light distribution for accent lighting. With covered mounting detail. If mounted in recessed housing it can be driven over by vehicles with pneumatic tyres, load 20kN. Manufacturer: ERCOMaterial: cover ring stainless steel, safety glass 15mm clear, reflector aluminium black lacquered, collimating lens made of optical polymerDimensions (mm): Ø 180 x 159Illuminant: 6W LED 3000KLuminous flux (Lumen): 600Scope of delivery: incl. illuminantDelivery time: 4 Weeks
%

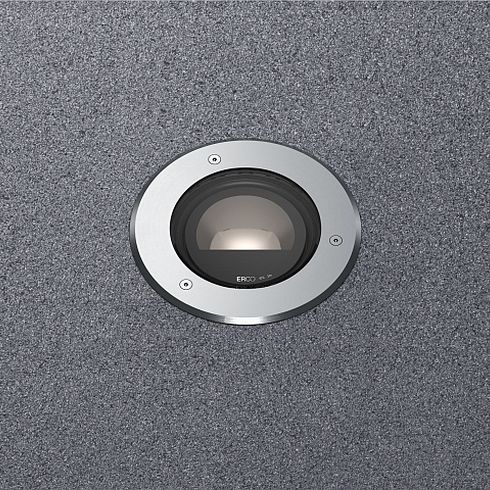

33414.000 TESIS uplight In-ground luminaire
€871.00*
€949.62*
(8.28% saved)
TESIS has long been a regular feature in the outdoor range. In a completely upgraded version, it now delivers an entirely new level of performance. Innovative photometrics ensure maximum brilliance and efficiency. A considerably flatter housing thanks to LED technology ensures exceptionally straightforward installation - in both round and square version. The robust plastic housing is fully corrosion-resistant and designed to ensure long life and ease of use. Uplight with Spherolit lens wide beam, optical cut-off 40°. Very wide beam, rotationally symmetrical light distribution for accent lighting. With flush mounting detail. If mounted in recessed housing it can be driven over by vehicles with pneumatic tyres, load 20kN. Manufacturer: ERCOMaterial: cover ring stainless steel, safety glass 15mm clear, reflector aluminium black lacquered, collimating lens made of optical polymerDimensions (mm): Ø 160 x 159Illuminant: 6W LED 3000KLuminous flux (Lumen): 600Scope of delivery: incl. illuminantDelivery time: 4 Weeks
%
33424.000 TESIS lens wallwasher In-ground luminaire
€1,090.00*
€1,187.62*
(8.22% saved)
TESIS has long been a regular feature in the outdoor range. In a completely upgraded version, it now delivers an entirely new level of performance. Innovative photometrics ensure maximum brilliance and efficiency. A considerably flatter housing thanks to LED technology ensures exceptionally straightforward installation - in both round and square version. The robust plastic housing is fully corrosion-resistant and designed to ensure long life and ease of use. Lens wallwasher, optical cut-off 40°, with asymmetrical light distribution for highly uniform wallwashing. With covered mounting detail. If mounted in recessed housing it can be driven over by vehicles with pneumatic tyres, load 20kN. Manufacturer: ERCOMaterial: cover ring stainless steel, safety glass 15mm clear, wallwasher reflector plastic aluminium vaporised, silver ribbed, partially black lacquered, with lower diffuser, lens system made of optical polymerDimensions (mm): Ø 180 x 159Illuminant: 8W LED 3000KLuminous flux (Lumen): 800Scope of delivery: incl. illuminantDelivery time: 4 Weeks
%
33472.000 TESIS lens wallwasher In-ground luminaire
€1,090.00*
€1,187.62*
(8.22% saved)
TESIS has long been a regular feature in the outdoor range. In a completely upgraded version, it now delivers an entirely new level of performance. Innovative photometrics ensure maximum brilliance and efficiency. A considerably flatter housing thanks to LED technology ensures exceptionally straightforward installation - in both round and square version. The robust plastic housing is fully corrosion-resistant and designed to ensure long life and ease of use. Lens wallwasher, optical cut-off 40°, with asymmetrical light distribution for highly uniform wallwashing. With flush mounting detail. If mounted in recessed housing it can be driven over by vehicles with pneumatic tyres, load 20kN. Manufacturer: ERCOMaterial: cover ring stainless steel, safety glass 15mm clear, wallwasher reflector plastic aluminium vaporised, silver ribbed, partially black lacquered, with lower diffuser, lens system made of optical polymerDimensions (mm): Ø 160 x 159Illuminant: 8W LED 3000KLuminous flux (Lumen): 800Scope of delivery: incl. illuminantDelivery time: 4 Weeks
%

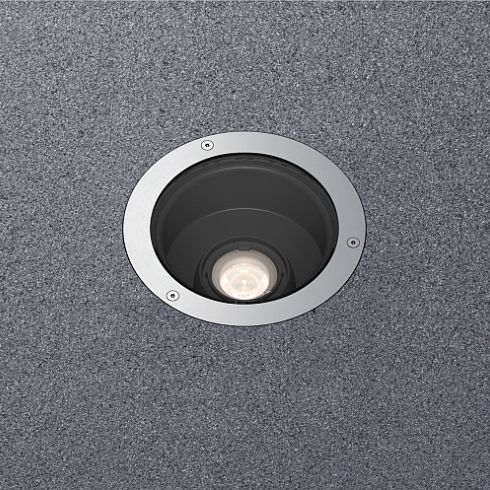

33502.000 TESIS directional luminaire In-ground luminaire
€1,111.00*
€1,211.42*
(8.29% saved)
TESIS has long been a regular feature in the outdoor range. In a completely upgraded version, it now delivers an entirely new level of performance. Innovative photometrics ensure maximum brilliance and efficiency. A considerably flatter housing thanks to LED technology ensures exceptionally straightforward installation - in both round and square version. The robust plastic housing is fully corrosion-resistant and designed to ensure long life and ease of use. Directional luminaire with Spherolit lens narrow spot, optical cut-off 30°. Very narrow beam, rotationally symmetrical light distribution for accent lighting. 0-30° tiltable, 360° rotatable. With covered mounting detail. If mounted in recessed housing it can be driven over by vehicles with pneumatic tyres, load 20kN. Manufacturer: ERCOMaterial: cover ring stainless steel, safety glass 15mm clear, reflector aluminium black lacquered, collimating lens made of optical polymerDimensions (mm): Ø 209 x 169Illuminant: 2W LED 3000KLuminous flux (Lumen): 200Scope of delivery: incl. illuminantDelivery time: 4 Weeks
%

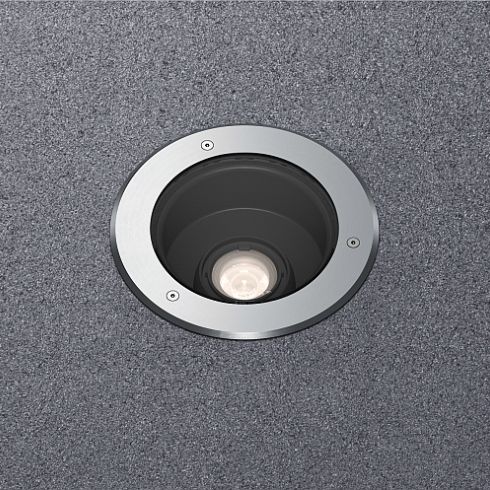

33504.000 TESIS directional luminaire In-ground luminaire
€1,111.00*
€1,211.42*
(8.29% saved)
TESIS has long been a regular feature in the outdoor range. In a completely upgraded version, it now delivers an entirely new level of performance. Innovative photometrics ensure maximum brilliance and efficiency. A considerably flatter housing thanks to LED technology ensures exceptionally straightforward installation - in both round and square version. The robust plastic housing is fully corrosion-resistant and designed to ensure long life and ease of use. Directional luminaire with Spherolit lens narrow spot, optical cut-off 30°. Very narrow beam, rotationally symmetrical light distribution for accent lighting. 0-30° tiltable, 360° rotatable. With flush mounting detail. If mounted in recessed housing it can be driven over by vehicles with pneumatic tyres, load 20kN. Manufacturer: ERCOMaterial: cover ring stainless steel, safety glass 15mm clear, reflector aluminium black lacquered, collimating lens made of optical polymerDimensions (mm): Ø 189 x 169Illuminant: 2W LED 3000KLuminous flux (Lumen): 200Scope of delivery: incl. illuminantDelivery time: 4 Weeks
