ERCO

LIGHTSCAN - monumental appeal in digital form for sophisticated lighting tasks in outdoor areas. LIGHTSCAN lends a new flair to outdoor lighting, yet cuts an equally fine figure indoors where applications call for a higher protection mode. Elegant look and highly efficient photometrics join to form a perfect symbiosis. Its high levels of luminous flux enable the illumination of buildings, walls or objects even where these are exceptionally tall or offer few options to position the projectors. LIGHTSCAN is exceptionally weather-resistant, as its slim silhouette blends harmoniously with the surroundings. Its flush cover glass as a contributing factor looks the part, elegantly providing reliable protection, but is also most easy to clean. Hinge swivable 90°, mounting plate rotatable through 240°.Spherolit lens, narrow spot. Very narrow beam, rotationally symmetrical light distribution for accent lighting. Emphasis of objects or architectural elements. Electronic control gear, switchable. Manufacturer: ERCOLabeling: London Design Award 2014Material: cast aluminium No-Rinse surface treatment double powder-coated, colour graphite, cover frame cast aluminium black powder-coated, safety glass, collimating lens made of optical polymer, graduated disc made of aluminiumDimensions (mm): base Ø 120, luminaire head 250 x 250 x 75, height 299Illuminant: 18W LED 3000KLuminous flux (Lumen): 1890Scope of delivery: incl. illuminantDelivery time: 4 Weeks

LIGHTSCAN - monumental appeal in digital form for sophisticated lighting tasks in outdoor areas. LIGHTSCAN lends a new flair to outdoor lighting, yet cuts an equally fine figure indoors where applications call for a higher protection mode. Elegant look and highly efficient photometrics join to form a perfect symbiosis. Its high levels of luminous flux enable the illumination of buildings, walls or objects even where these are exceptionally tall or offer few options to position the projectors. LIGHTSCAN is exceptionally weather-resistant, as its slim silhouette blends harmoniously with the surroundings. Its flush cover glass as a contributing factor looks the part, elegantly providing reliable protection, but is also most easy to clean. Hinge swivable 90°, mounting plate rotatable through 240°.Spherolit lens, spot. Narrow beam, rotationally symmetrical light distribution for accent lighting. Emphasis of objects or architectural elements. Electronic control gear, switchable. Manufacturer: ERCOLabeling: London Design Award 2014Material: cast aluminium No-Rinse surface treatment double powder-coated, colour graphite, cover frame cast aluminium black powder-coated, safety glass, collimating lens made of optical polymer, graduated disc made of aluminiumDimensions (mm): base Ø 120, luminaire head 250 x 250 x 75, height 299Illuminant: 48W LED 3000KLuminous flux (Lumen): 5040Scope of delivery: incl. illuminantDelivery time: 4 Weeks

LIGHTSCAN - monumental appeal in digital form for sophisticated lighting tasks in outdoor areas. LIGHTSCAN lends a new flair to outdoor lighting, yet cuts an equally fine figure indoors where applications call for a higher protection mode. Elegant look and highly efficient photometrics join to form a perfect symbiosis. Its high levels of luminous flux enable the illumination of buildings, walls or objects even where these are exceptionally tall or offer few options to position the projectors. LIGHTSCAN is exceptionally weather-resistant, as its slim silhouette blends harmoniously with the surroundings. Its flush cover glass as a contributing factor looks the part, elegantly providing reliable protection, but is also most easy to clean. Hinge swivable 90°, mounting plate rotatable through 240°.Spherolit lens, flood. Wide beam, rotationally symmetrical light distribution for accent lighting. Emphasis of objects or architectural elements. Electronic control gear, switchable. Manufacturer: ERCOLabeling: London Design Award 2014Material: cast aluminium No-Rinse surface treatment double powder-coated, colour graphite, cover frame cast aluminium black powder-coated, safety glass, collimating lens made of optical polymer, graduated disc made of aluminiumDimensions (mm): base Ø 120, luminaire head 250 x 250 x 75, height 299Illuminant: 48W LED 3000KLuminous flux (Lumen): 5040Scope of delivery: incl. illuminantDelivery time: 4 Weeks

LIGHTSCAN - monumental appeal in digital form for sophisticated lighting tasks in outdoor areas. LIGHTSCAN lends a new flair to outdoor lighting, yet cuts an equally fine figure indoors where applications call for a higher protection mode. Elegant look and highly efficient photometrics join to form a perfect symbiosis. Its high levels of luminous flux enable the illumination of buildings, walls or objects even where these are exceptionally tall or offer few options to position the projectors. LIGHTSCAN is exceptionally weather-resistant, as its slim silhouette blends harmoniously with the surroundings. Its flush cover glass as a contributing factor looks the part, elegantly providing reliable protection, but is also most easy to clean. Hinge swivable 90°, mounting plate rotatable through 240°.Spherolit lens, wide flood. Very wide beam, rotationally symmetrical light distribution for accent lighting. Emphasis of objects or architectural elements. Electronic control gear, switchable. Manufacturer: ERCOLabeling: London Design Award 2014Material: cast aluminium No-Rinse surface treatment double powder-coated, colour graphite, cover frame cast aluminium black powder-coated, safety glass, collimating lens made of optical polymer, graduated disc made of aluminiumDimensions (mm): base Ø 120, luminaire head 250 x 250 x 75, height 299Illuminant: 48W LED 3000KLuminous flux (Lumen): 5040Scope of delivery: incl. illuminantDelivery time: 4 Weeks

LIGHTSCAN - monumental appeal in digital form for sophisticated lighting tasks in outdoor areas. LIGHTSCAN lends a new flair to outdoor lighting, yet cuts an equally fine figure indoors where applications call for a higher protection mode. Elegant look and highly efficient photometrics join to form a perfect symbiosis. Its high levels of luminous flux enable the illumination of buildings, walls or objects even where these are exceptionally tall or offer few options to position the projectors. LIGHTSCAN is exceptionally weather-resistant, as its slim silhouette blends harmoniously with the surroundings. Its flush cover glass as a contributing factor looks the part, elegantly providing reliable protection, but is also most easy to clean. Hinge swivable 90°, mounting plate rotatable through 240°.Spherolit lens, oval flood, rotatable through 360. Axially symmetrical light distribution with flood characteristics produced by an oval beam for floodlighting. Wide-beam illumination of larger objects or spatial zones. Electronic control gear, switchable. Manufacturer: ERCOLabeling: London Design Award 2014Material: cast aluminium No-Rinse surface treatment double powder-coated, colour graphite, cover frame cast aluminium black powder-coated, safety glass, collimating lens made of optical polymer, graduated disc made of aluminiumDimensions (mm): base Ø 120, luminaire head 250 x 250 x 75, height 299Illuminant: 48W LED 3000KLuminous flux (Lumen): 5040Scope of delivery: incl. illuminantDelivery time: 4 Weeks

LIGHTSCAN - monumental appeal in digital form for sophisticated lighting tasks in outdoor areas. LIGHTSCAN lends a new flair to outdoor lighting, yet cuts an equally fine figure indoors where applications call for a higher protection mode. Elegant look and highly efficient photometrics join to form a perfect symbiosis. Its high levels of luminous flux enable the illumination of buildings, walls or objects even where these are exceptionally tall or offer few options to position the projectors. LIGHTSCAN is exceptionally weather-resistant, as its slim silhouette blends harmoniously with the surroundings. Its flush cover glass as a contributing factor looks the part, elegantly providing reliable protection, but is also most easy to clean. Hinge swivable 90°, mounting plate rotatable through 240°.Spherolit lens, wallwash. Asymmetrical light distribution for highly uniform wallwashing. Vertical illuminance for brightening the surroundings and segmenting the exterior landscape. Electronic control gear, switchable. Manufacturer: ERCOLabeling: London Design Award 2014Material: cast aluminium No-Rinse surface treatment double powder-coated, colour graphite, cover frame cast aluminium black powder-coated, safety glass, collimating lens made of optical polymer, graduated disc made of aluminiumDimensions (mm): base Ø 120, luminaire head 250 x 250 x 75, height 299Illuminant: 48W LED 3000KLuminous flux (Lumen): 5040Scope of delivery: incl. illuminantDelivery time: 4 Weeks

KONA is great for the illumination of large buildings or objects. Its round tapered housing ensures maximum visual comfort with excellent glare control. With its round shape, KONA can be used flexibly in different spatial situations and architectural formats. Maintenance-free optoelectronics are designed for a long life and help reduce the operating costs whilst enabling operation in mounting locations with challenging access. KONA offers a weather-resistant housing and a rotatable and tiltable mounting plate that can be aligned precisely. Cut-off angle 30°. Spherolit lens, narrow spot. Very narrow beam, rotationally symmetrical light distribution for accent lighting. Emphasis of objects or architectural elements. Electronic control gear, switchable. Manufacturer: ERCOLabeling: iF Gold Award 2017, German Design Award Special 2017, Design Plus 2016Material: cast aluminium No-Rinse surface treatment double powder-coated, colour graphite, safety glass, collimating lens made of optical polymer, graduated disc made of aluminium, anti-glare cone made of black polymerDimensions (mm): base Ø 120, light head Ø 257/292, height 324Illuminant: 18W LED 3000KLuminous flux (Lumen): 1890Scope of delivery: incl. illuminantDelivery time: 4 Weeks

KONA is great for the illumination of large buildings or objects. Its round tapered housing ensures maximum visual comfort with excellent glare control. With its round shape, KONA can be used flexibly in different spatial situations and architectural formats. Maintenance-free optoelectronics are designed for a long life and help reduce the operating costs whilst enabling operation in mounting locations with challenging access. KONA offers a weather-resistant housing and a rotatable and tiltable mounting plate that can be aligned precisely. Cut-off angle 30°. Spherolit lens, spot. Narrow beam, rotationally symmetrical light distribution for accent lighting. Emphasis of objects or architectural elements. Electronic control gear, switchable. Manufacturer: ERCOLabeling: iF Gold Award 2017, German Design Award Special 2017, Design Plus 2016Material: cast aluminium No-Rinse surface treatment double powder-coated, colour graphite, safety glass, collimating lens made of optical polymer, graduated disc made of aluminium, anti-glare cone made of black polymerDimensions (mm): base Ø 120, light head Ø 257/292, height 324Illuminant: 48W LED 3000KLuminous flux (Lumen): 5040Scope of delivery: incl. illuminantDelivery time: 4 Weeks

KONA is great for the illumination of large buildings or objects. Its round tapered housing ensures maximum visual comfort with excellent glare control. With its round shape, KONA can be used flexibly in different spatial situations and architectural formats. Maintenance-free optoelectronics are designed for a long life and help reduce the operating costs whilst enabling operation in mounting locations with challenging access. KONA offers a weather-resistant housing and a rotatable and tiltable mounting plate that can be aligned precisely. Cut-off angle 30°. Spherolit lens, flood. Wide beam, rotationally symmetrical light distribution for accent lighting. Emphasis of objects or architectural elements. Electronic control gear, switchable. Manufacturer: ERCOLabeling: iF Gold Award 2017, German Design Award Special 2017, Design Plus 2016Material: cast aluminium No-Rinse surface treatment double powder-coated, colour graphite, safety glass, collimating lens made of optical polymer, graduated disc made of aluminium, anti-glare cone made of black polymerDimensions (mm): base Ø 120, light head Ø 257/292, height 324Illuminant: 48W LED 3000KLuminous flux (Lumen): 5040Scope of delivery: incl. illuminantDelivery time: 4 Weeks

KONA is great for the illumination of large buildings or objects. Its round tapered housing ensures maximum visual comfort with excellent glare control. With its round shape, KONA can be used flexibly in different spatial situations and architectural formats. Maintenance-free optoelectronics are designed for a long life and help reduce the operating costs whilst enabling operation in mounting locations with challenging access. KONA offers a weather-resistant housing and a rotatable and tiltable mounting plate that can be aligned precisely. Spherolit lens, wide flood. Very wide beam, rotationally symmetrical light distribution for accent lighting. Emphasis of objects or architectural elements. Electronic control gear, switchable. Manufacturer: ERCOLabeling: iF Gold Award 2017, German Design Award Special 2017, Design Plus 2016Material: cast aluminium No-Rinse surface treatment double powder-coated, colour graphite, safety glass, collimating lens made of optical polymer, graduated disc made of aluminium, anti-glare cone made of black polymerDimensions (mm): base Ø 120, light head Ø 257/292, height 324Illuminant: 48W LED 3000KLuminous flux (Lumen): 5040Scope of delivery: incl. illuminantDelivery time: 4 Weeks

KONA is great for the illumination of large buildings or objects. Its round tapered housing ensures maximum visual comfort with excellent glare control. With its round shape, KONA can be used flexibly in different spatial situations and architectural formats. Maintenance-free optoelectronics are designed for a long life and help reduce the operating costs whilst enabling operation in mounting locations with challenging access. KONA offers a weather-resistant housing and a rotatable and tiltable mounting plate that can be aligned precisely. Spherolit lens, oval flood, rotatable through 360°. Axially symmetrical light distribution with flood characteristics produced by an oval beam for floodlighting. Wide-beam illumination of larger objects or spatial zones. Electronic control gear, switchable. Manufacturer: ERCOLabeling: iF Gold Award 2017, German Design Award Special 2017, Design Plus 2016Material: cast aluminium No-Rinse surface treatment double powder-coated, colour graphite, safety glass, collimating lens made of optical polymer, graduated disc made of aluminium, anti-glare cone made of black polymerDimensions (mm): base Ø 120, light head Ø 257/292, height 324Illuminant: 48W LED 3000KLuminous flux (Lumen): 5040Scope of delivery: incl. illuminantDelivery time: 4 Weeks

KONA is great for the illumination of large buildings or objects. Its round tapered housing ensures maximum visual comfort with excellent glare control. With its round shape, KONA can be used flexibly in different spatial situations and architectural formats. Maintenance-free optoelectronics are designed for a long life and help reduce the operating costs whilst enabling operation in mounting locations with challenging access. KONA offers a weather-resistant housing and a rotatable and tiltable mounting plate that can be aligned precisely. Spherolit lens, wallwash. Asymmetrical light distribution for highly uniform wallwashing. Vertical illuminance for brightening the surroundings and segmenting the exterior landscape. Electronic control gear, switchable. Manufacturer: ERCOLabeling: iF Gold Award 2017, German Design Award Special 2017, Design Plus 2016Material: cast aluminium No-Rinse surface treatment double powder-coated, colour graphite, safety glass, collimating lens made of optical polymer, graduated disc made of aluminium, anti-glare cone made of black polymerDimensions (mm): base Ø 120, light head Ø 257/292, height 324Illuminant: 48W LED 3000KLuminous flux (Lumen): 5040Scope of delivery: incl. illuminantDelivery time: 4 Weeks

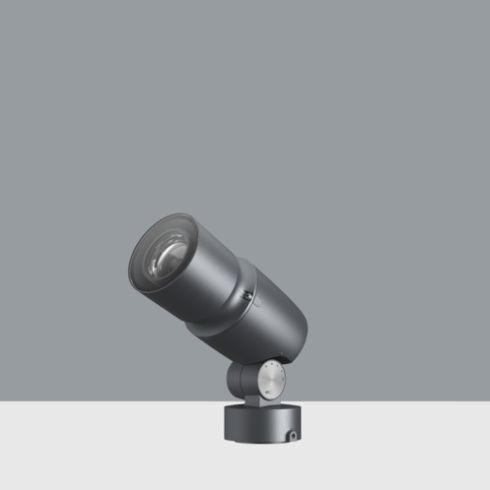

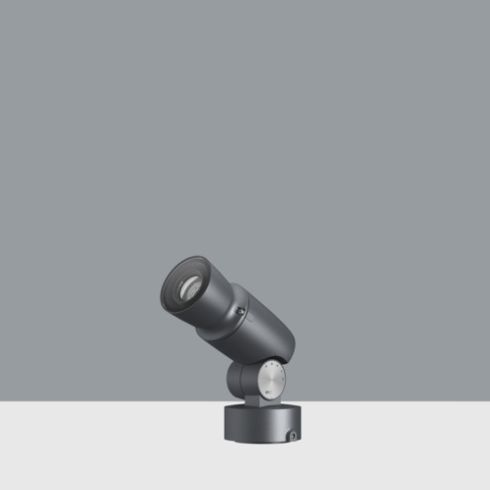

BEAMER NEW - Maximum visual comfort for the highest demands.Adaptable projectors without spill light that master light and darkness in outdoor spaces. BEAMER NEW projectors are precision tools for the most demanding outdoor lighting tasks – technically on a par with the best museum spotlights. With compact and corrosion-free housings, they feature exceptional quality of light, adaptivity and digital connectivity. The light emission of their innovative darklight optics is highly uniform and without spill light. This gives the projectors maximum visual comfort and a magical appearance. Hinge 90° tilt, mounting plate rotatable through 330°. Internal lens unit rotatable through 360°. Darklight lens with extra wide flood optics (beam angle 81°), very wide rotationally symmetrical light distribution for floodlighting.Construction size M.Built-in control gear switchable (on/off). Manufacturer: ERCOMaterial: luminaire head with non-reflective protective glass made of cast aluminium, no-rinse surface treatment, double powder-coated, colour graphite, housing and swivel joint made of polymer, dial made of aluminium, Fresnel lens made of optical polymerDimensions (mm): Ø 144 x 350 x 245, mounting plate Ø 123Illuminant: 25W LED 3000KLuminous flux (Lumen): 1204Scope of delivery: incl. illuminantDelivery time: 4-6 Weeks

BEAMER NEW - Maximum visual comfort for the highest demands.Adaptable projectors without spill light that master light and darkness in outdoor spaces. BEAMER NEW projectors are precision tools for the most demanding outdoor lighting tasks – technically on a par with the best museum spotlights. With compact and corrosion-free housings, they feature exceptional quality of light, adaptivity and digital connectivity. The light emission of their innovative darklight optics is highly uniform and without spill light. This gives the projectors maximum visual comfort and a magical appearance. Hinge 90° tilt, mounting plate rotatable through 330°. Internal lens unit rotatable through 360°. Darklight lens with flood optics (beam angle 29°), wide beam, rotationally symmetrical light distribution for accent lighting. Construction size M.Built-in control gear switchable (on/off). Manufacturer: ERCOMaterial: luminaire head with non-reflective protective glass made of cast aluminium, no-rinse surface treatment, double powder-coated, colour graphite, housing and swivel joint made of polymer, dial made of aluminium, Darklight lens made of optical polymerDimensions (mm): Ø 144 x 350 x 245, mounting plate Ø 123Illuminant: 25W LED 3000KLuminous flux (Lumen): 1328Scope of delivery: incl. illuminantDelivery time: 4-6 Weeks

BEAMER NEW - Maximum visual comfort for the highest demands.Adaptable projectors without spill light that master light and darkness in outdoor spaces. BEAMER NEW projectors are precision tools for the most demanding outdoor lighting tasks – technically on a par with the best museum spotlights. With compact and corrosion-free housings, they feature exceptional quality of light, adaptivity and digital connectivity. The light emission of their innovative darklight optics is highly uniform and without spill light. This gives the projectors maximum visual comfort and a magical appearance. Hinge 90° tilt, mounting plate rotatable through 330°. Internal lens unit rotatable through 360°. Spherolit lens with wallwash optics, asymmetrical light distribution for highly uniform wallwashing.Construction size M.Built-in control gear switchable (on/off). Manufacturer: ERCOMaterial: luminaire head with non-reflective protective glass made of cast aluminium, no-rinse surface treatment, double powder-coated, colour graphite, housing and swivel joint made of polymer, dial made of aluminium, Spherolit lens made of optical polymerDimensions (mm): Ø 144 x 350 x 245, mounting plate Ø 123Illuminant: 25W LED 3000KLuminous flux (Lumen): 1426Scope of delivery: incl. illuminantDelivery time: 4-6 Weeks

BEAMER NEW - Maximum visual comfort for the highest demands.Adaptable projectors without spill light that master light and darkness in outdoor spaces. BEAMER NEW projectors are precision tools for the most demanding outdoor lighting tasks – technically on a par with the best museum spotlights. With compact and corrosion-free housings, they feature exceptional quality of light, adaptivity and digital connectivity. The light emission of their innovative darklight optics is highly uniform and without spill light. This gives the projectors maximum visual comfort and a magical appearance. Hinge 90° tilt, mounting plate rotatable through 330°. Internal lens unit rotatable through 360°. Darklight lens with spot optics (beam angle 17°), narrow beam, rotationally symmetrical light distribution for accent lighting.Construction size M.Built-in control gear switchable (on/off). Manufacturer: ERCOMaterial: luminaire head with non-reflective protective glass made of cast aluminium, no-rinse surface treatment, double powder-coated, colour graphite, housing and swivel joint made of polymer, dial made of aluminium, Darklight lens made of optical polymerDimensions (mm): Ø 144 x 350 x 245, mounting plate Ø 123Illuminant: 25W LED 3000KLuminous flux (Lumen): 1318Scope of delivery: incl. illuminantDelivery time: 4-6 Weeks

BEAMER NEW - Maximum visual comfort for the highest demands.Adaptable projectors without spill light that master light and darkness in outdoor spaces. BEAMER NEW projectors are precision tools for the most demanding outdoor lighting tasks – technically on a par with the best museum spotlights. With compact and corrosion-free housings, they feature exceptional quality of light, adaptivity and digital connectivity. The light emission of their innovative darklight optics is highly uniform and without spill light. This gives the projectors maximum visual comfort and a magical appearance. Hinge 90° tilt, mounting plate rotatable through 330°. Internal lens unit rotatable through 360°. Darklight lens with extra wide flood optics (beam angle 80°), very wide rotationally symmetrical light distribution for floodlighting.Construction size S.Built-in control gear switchable (on/off). Manufacturer: ERCOMaterial: luminaire head with non-reflective protective glass made of cast aluminium, no-rinse surface treatment, double powder-coated, colour graphite, housing and swivel joint made of polymer, dial made of aluminium, Fresnel lens made of optical polymerDimensions (mm): Ø 104 x 284 x 205, mounting plate Ø 123Illuminant: 15W LED 3000KLuminous flux (Lumen): 741Scope of delivery: incl. illuminantDelivery time: 4-6 Weeks

BEAMER NEW - Maximum visual comfort for the highest demands.Adaptable projectors without spill light that master light and darkness in outdoor spaces. BEAMER NEW projectors are precision tools for the most demanding outdoor lighting tasks – technically on a par with the best museum spotlights. With compact and corrosion-free housings, they feature exceptional quality of light, adaptivity and digital connectivity. The light emission of their innovative darklight optics is highly uniform and without spill light. This gives the projectors maximum visual comfort and a magical appearance. Hinge 90° tilt, mounting plate rotatable through 330°. Internal lens unit rotatable through 360°. Darklight lens with flood optics (beam angle 33°), wide beam, rotationally symmetrical light distribution for accent lighting. Construction size S.Built-in control gear switchable (on/off). Manufacturer: ERCOMaterial: luminaire head with non-reflective protective glass made of cast aluminium, no-rinse surface treatment, double powder-coated, colour graphite, housing and swivel joint made of polymer, dial made of aluminium, Darklight lens made of optical polymerDimensions (mm): Ø 104 x 284 x 205, mounting plate Ø 123Illuminant: 15W LED 3000KLuminous flux (Lumen): 810Scope of delivery: incl. illuminantDelivery time: 4-6 Weeks

BEAMER NEW - Maximum visual comfort for the highest demands.Adaptable projectors without spill light that master light and darkness in outdoor spaces. BEAMER NEW projectors are precision tools for the most demanding outdoor lighting tasks – technically on a par with the best museum spotlights. With compact and corrosion-free housings, they feature exceptional quality of light, adaptivity and digital connectivity. The light emission of their innovative darklight optics is highly uniform and without spill light. This gives the projectors maximum visual comfort and a magical appearance. Hinge 90° tilt, mounting plate rotatable through 330°. Internal lens unit rotatable through 360°. Spherolit lens with wallwash optics, asymmetrical light distribution for highly uniform wallwashing.Construction size S.Built-in control gear switchable (on/off). Manufacturer: ERCOMaterial: luminaire head with non-reflective protective glass made of cast aluminium, no-rinse surface treatment, double powder-coated, colour graphite, housing and swivel joint made of polymer, dial made of aluminium, Spherolit lens made of optical polymerDimensions (mm): Ø 104 x 284 x 205, mounting plate Ø 123Illuminant: 15W LED 3000KLuminous flux (Lumen): 879Scope of delivery: incl. illuminantDelivery time: 4-6 Weeks

BEAMER NEW - Maximum visual comfort for the highest demands.Adaptable projectors without spill light that master light and darkness in outdoor spaces. BEAMER NEW projectors are precision tools for the most demanding outdoor lighting tasks – technically on a par with the best museum spotlights. With compact and corrosion-free housings, they feature exceptional quality of light, adaptivity and digital connectivity. The light emission of their innovative darklight optics is highly uniform and without spill light. This gives the projectors maximum visual comfort and a magical appearance. Hinge 90° tilt, mounting plate rotatable through 330°. Internal lens unit rotatable through 360°. Darklight lens with spot optics (beam angle 20°), narrow beam, rotationally symmetrical light distribution for accent lighting.Construction size S.Built-in control gear switchable (on/off). Manufacturer: ERCOMaterial: luminaire head with non-reflective protective glass made of cast aluminium, no-rinse surface treatment, double powder-coated, colour graphite, housing and swivel joint made of polymer, dial made of aluminium, Darklight lens made of optical polymerDimensions (mm): Ø 104 x 284 x 205, mounting plate Ø 123Illuminant: 15W LED 3000KLuminous flux (Lumen): 836Scope of delivery: incl. illuminantDelivery time: 4-6 Weeks
