13249 - Recessed canopy velvet black for BEGA system pendant luminaires
Product information "13249 - Recessed canopy velvet black for BEGA system pendant luminaires"
Installation component – Recessed canopy (Type C) – for interior use. For the mounting and electrical installation of a BEGA system pendant luminaire on straight or sloped ceilings with an inclination of 0 - 40°. The recessed ceiling installation frame is attached via 2 adjustable claws, arranged in a wedge formation. Synthetic 2-piece line connector (clamp part with screw cap) for braided coaxial cables. With internal pressure spring and contact wire. For connecting one cable pendant 2x0,5mm² or 2x0.75mm². External LED power supply unit (DALI controllable) included. Primary: 220-240V, 0/50-60Hz, DC 176-280V; Secondary: 500mA DC, max. 20W.
Manufacturer: BEGA
Material: recessed ceiling installation frame and metal hanger, canopy made of synthetic material, finish velvet black

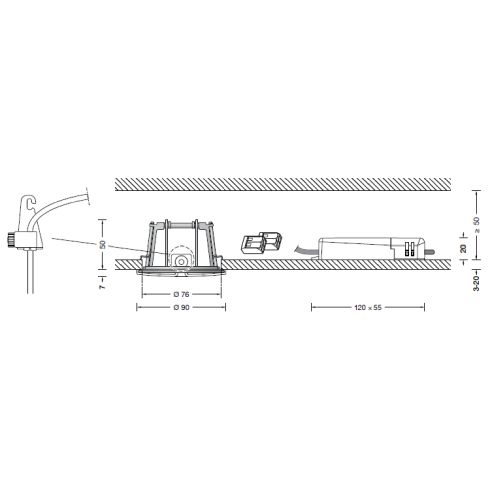

Dimensions (mm): Ø 90, recessed opening Ø 76, recessed depth required 50, power supply 120 x 55 x 20
Delivery time: 2 Weeks
Manufacturer: BEGA
Material: recessed ceiling installation frame and metal hanger, canopy made of synthetic material, finish velvet black
Dimensions (mm): Ø 90, recessed opening Ø 76, recessed depth required 50, power supply 120 x 55 x 20
Delivery time: 2 Weeks
Properties "13249 - Recessed canopy velvet black for BEGA system pendant luminaires"
| Color: | black |
|---|---|
| Protection class: | IP 20 |
| certifikation mark: | ENEC |
