13279 - Recessed canopy Smart velvet white for BEGA system pendant luminaires

Installation component – Recessed canopy - Smart (Type CS) for interior use. With integrated Smart DALI-Controller for controlling the luminaire with the BEGA Smart app.
For the electrical installation and mounting of a BEGA ssystem pendant luminaire on straight or sloped ceilings with an inclination of 0 - 40°.
The canopy modernises existing electrical installations. It introduces professional light control into any building using the manufacturer-independent DALI interface standard. even if only older, three-core cables are installed.It also acts as a link between all components of the BEGA Smart system and allows all DALI luminaires and BEGA Zigbee lamps to be controlled remotely. Once successfully installed, the device is configured in the BEGA Smart app on a smartphone. The BEGA Smart app is available free of charge for iOS and Android.
The recessed ceiling installation frame is attached via 2 adjustable claws, arranged in a wedge formation. Synthetic 2-piece line connector (clamp part with screw cap) for braided coaxial cables. With internal pressure spring and contact wire For connecting one cable pendant 2x0,5mm² or 2x0.75mm². External LED power supply unit, supply voltage: 220-240V, 0/50-60Hz; Secondary: 700mA, 7-26W.
The canopy is suitable for controlling the following operating modes:
• On/off
• Dimming
• Group control
• Scenarios
Data matrix code for convenient configuration via smartphone.
Manufacturer: BEGA
Material: recessed ceiling installation frame and metal hanger, canopy made of synthetic material, finish velvet white

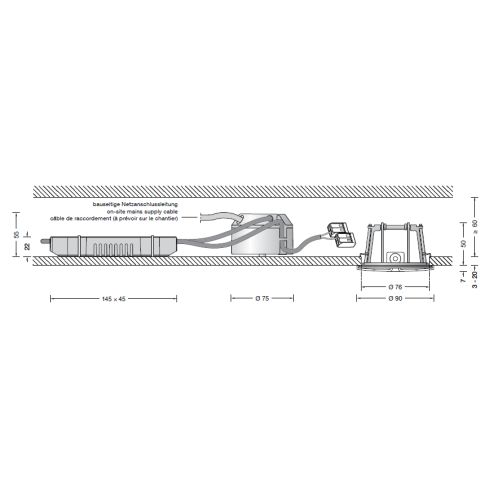

Dimensions (mm): Ø 90, recessed opening Ø 76, recessed depth required 60, power supply 145 x 45 x 22, DALI controller Ø 75 x 55
Delivery time: 2 Weeks
