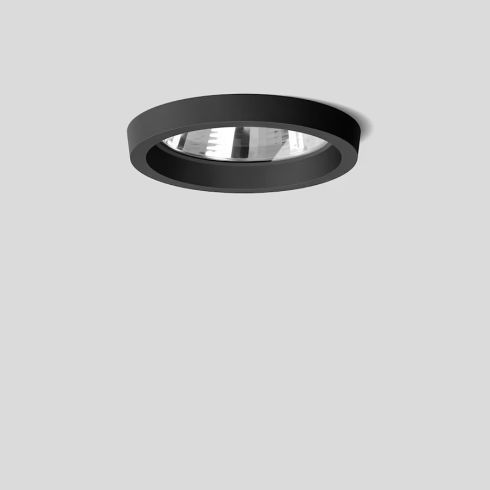

24251K3 Recessed ceiling luminaire · Downlight, graphite
Product information "24251K3 Recessed ceiling luminaire · Downlight, graphite"
Recessed LED ceiling downlight with symmetrical very wide beam light distribution (half-beam angle 58°) for installation in suspended ceilings. Using the appropriate installation housing 13609 which can be ordered separately, the luminaire is also suitable for installation in concrete ceilings. With BEGA Hybrid Optics® technology for optimal light control. This is made possible by optimal refraction and reflection by precise reflectors with a surface made of pure aluminium, and lenses made of ultra-clear silicone. The resulting optical systems are highly efficient, low-loss, and optimally suppress glare despite their very compact dimensions.
The external power supply unit (DALI controllable) is included in the scope of delivery and is connected to the luminaire by means of a convenient plug connector. The electrical connection of the power supply unit can therefore be established before the final installation of the luminaire, if required by the customer.
Manufacturer: BEGA
Material: cast aluminium, aluminium and stainless steel, cover ring aluminium alloy, BEGA Unidure® coating technology, colour graphite, clear safety glass, optical silicone lens · BEGA Hybrid Optics®, reflector surface made of pure aluminium

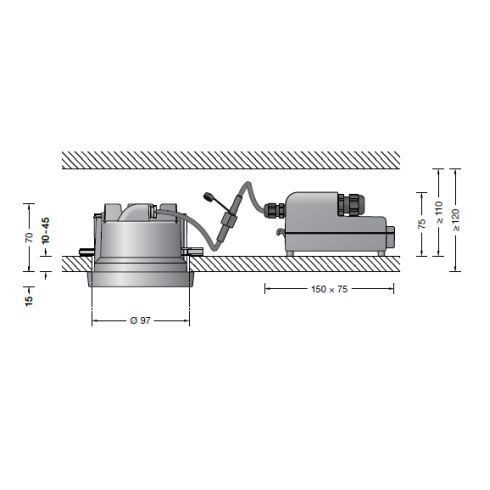

Dimensions (mm): Ø 110 x 70, ceiling aperture Ø 97, recessed depth required 70, power supply 150 x 75 x 75 required clearance for the power supply unit above ceiling 110
Illuminant: 14W LED 3000K
Luminous flux (Lumen): 1390
Scope of delivery: incl. illuminant
Delivery time: 1 Week
The external power supply unit (DALI controllable) is included in the scope of delivery and is connected to the luminaire by means of a convenient plug connector. The electrical connection of the power supply unit can therefore be established before the final installation of the luminaire, if required by the customer.
Manufacturer: BEGA
Material: cast aluminium, aluminium and stainless steel, cover ring aluminium alloy, BEGA Unidure® coating technology, colour graphite, clear safety glass, optical silicone lens · BEGA Hybrid Optics®, reflector surface made of pure aluminium
Dimensions (mm): Ø 110 x 70, ceiling aperture Ø 97, recessed depth required 70, power supply 150 x 75 x 75 required clearance for the power supply unit above ceiling 110
Illuminant: 14W LED 3000K
Luminous flux (Lumen): 1390
Scope of delivery: incl. illuminant
Delivery time: 1 Week
Properties "24251K3 Recessed ceiling luminaire · Downlight, graphite"
| Color: | graphite |
|---|---|
| Color rendering level: | 1B |
| Lichtfarbe: | warm white |
| Light distribution: | Ceiling luminaire with wide beam light distribution |
| Protection class: | IP 65 |
| certifikation mark: | ENEC |
| energy efficiency class: | D |
Login
Zubehör
%
Accessory - 13609 Installation housing
€109.00*
€119.83*
(9.04% saved)
Installation housing with a recessed opening ø 98.5mm for the installation of recessed ceiling luminaires with external power supply unit in concrete ceilings. Three mounting brackets with one hole each ø 5mm for mounting on the casing or reinforcement. Centring plate with threaded rod and wing nuts for fixing the installation housing on the formwork. Two opposite entries for installation conduits max ø 30mm. Manufacturer: BEGAMaterial: aluminiumDimensions (mm): 295 x 165 x 150Delivery time: 2 Weeks
