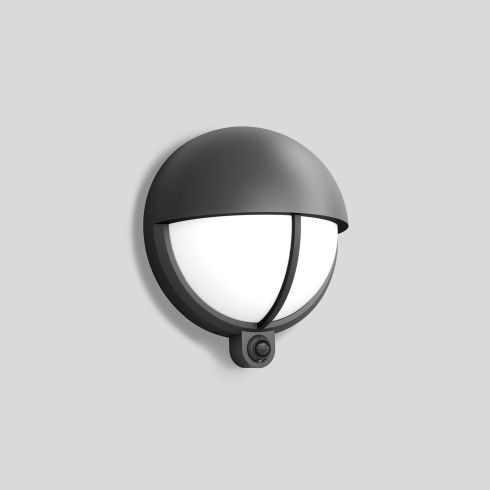

24347K3 Wall luminaire with PIR sensor, graphite
Product information "24347K3 Wall luminaire with PIR sensor, graphite"
Shielded wall luminaires with integral passive infrared motion and light sensor for use in an existing DALI system.
These luminaires with built-in passive infrared motion and light sensor react to thermal radiation in darkness. They activate when people or animals move in the vicinity of the luminaire.
Passive infrared motion sensor (PIR) with the following parameters: specified range 10m, opening angle horizontal 110°, opening angle vertical 93°, minimum temperature difference between moving object and environment 4° Celsius, object speed 1m/s.
Light sensor: Measuring range adjustable using DALI Cockpit 0-2500lx, Resolution 1lx. Time hysteresis for the suppression of rapid brightness.
Manufacturer: BEGA
Material: die cast aluminium, aluminium and stainless steel, BEGA Unidure® coating technology, colour graphite, crystal glass inside white

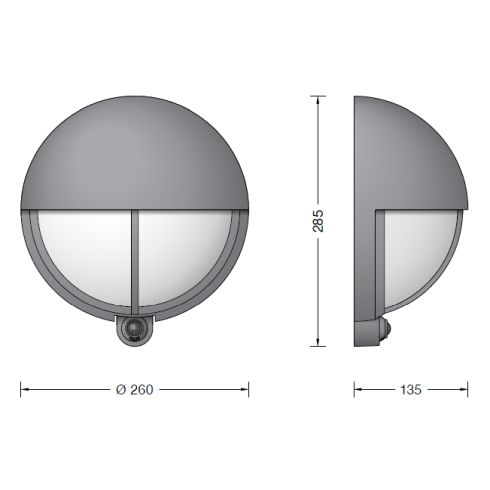

Dimensions (mm): Ø 260 x 135
Illuminant: 10.2W LED 3000K
Luminous flux (Lumen): 644
Scope of delivery: incl. illuminant
Delivery time: 1 Week
These luminaires with built-in passive infrared motion and light sensor react to thermal radiation in darkness. They activate when people or animals move in the vicinity of the luminaire.
Passive infrared motion sensor (PIR) with the following parameters: specified range 10m, opening angle horizontal 110°, opening angle vertical 93°, minimum temperature difference between moving object and environment 4° Celsius, object speed 1m/s.
Light sensor: Measuring range adjustable using DALI Cockpit 0-2500lx, Resolution 1lx. Time hysteresis for the suppression of rapid brightness.
Manufacturer: BEGA
Material: die cast aluminium, aluminium and stainless steel, BEGA Unidure® coating technology, colour graphite, crystal glass inside white
Dimensions (mm): Ø 260 x 135
Illuminant: 10.2W LED 3000K
Luminous flux (Lumen): 644
Scope of delivery: incl. illuminant
Delivery time: 1 Week
Properties "24347K3 Wall luminaire with PIR sensor, graphite"
| Color: | graphite |
|---|---|
| Color rendering level: | 1B |
| Lichtfarbe: | warm white |
| Light distribution: | Wide beam downwards |
| Protection class: | IP 65 |
| certifikation mark: | ENEC |
| energy efficiency class: | B |
