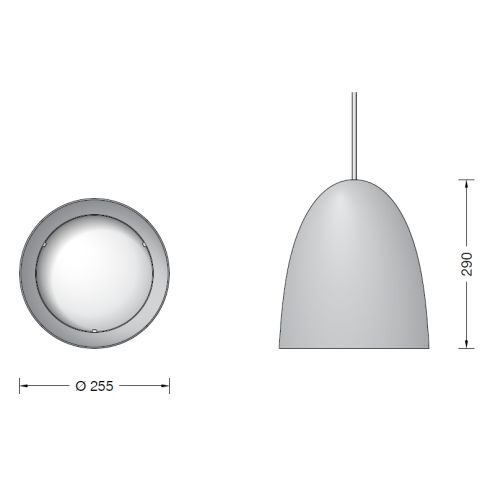

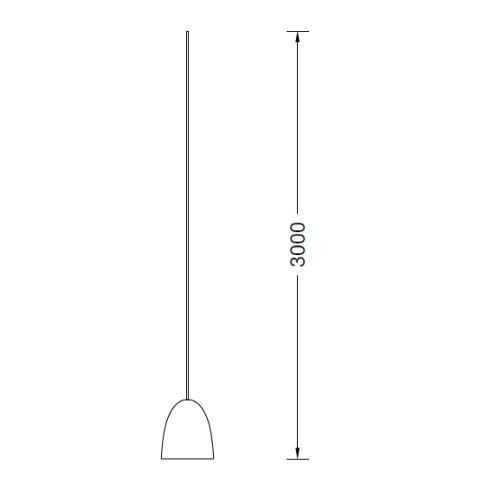

50954.6K3 - STUDIO LINE LED system pendant luminaire, copper

Installation component – Surface-mounted canopy - Smart (Type B) for interior use. With integrated Smart DALI-Controller for controlling the luminaire with the BEGA Smart app.For the mounting and electrical installation of a BEGA system pendant luminaire on any type of straight ceiling.The canopy modernises existing electrical installations. It introduces professional light control into any building using the manufacturer-independent DALI interface standard. even if only older, three-core cables are installed.It also acts as a link between all components of the BEGA Smart system and allows all DALI luminaires and BEGA Zigbee lamps to be controlled remotely. Once successfully installed, the device is configured in the BEGA Smart app on a smartphone. The BEGA Smart app is available free of charge for iOS and Android.Synthetic 2-piece line connector (clamp part with screw cap) for braided coaxial cables. With internal pressure spring and contact wire. For connecting one cable pendant 2x0,5mm² or 2x0.75mm². LED power supply unit in the canopy integrated. Supply voltage: 220-240V, 0/50-60Hz; Secondary: 700mA, 7-26W.The canopy is suitable for controlling the following operating modes:• On/off• Dimming• Group control• ScenariosData matrix code for convenient configuration via smartphone. Manufacturer: BEGAMaterial: metal hanger and mounting plate, canopy made of synthetic material, finish velvet blackDimensions (mm): Ø 80 x 145Delivery time: 2 Weeks

Installation component – Surface-mounted canopy (Type B) – for interior use. For the mounting and electrical installation of a BEGA system pendant luminaire on straight or sloped ceilings with an inclination of 0 - 40°. Synthetic 2-piece line connector (clamp part with screw cap) for braided coaxial cables. With internal pressure spring and contact wire. For connecting one cable pendant 2x0,5mm² or 2x0.75mm². LED power supply unit (DALI controllable) in the canopy integrated. Primary: 220-240V, 0/50-60Hz, DC 176-275V; Secondary: 700mA DC, 7-26W. Manufacturer: BEGAMaterial: metal hanger and mounting plate, canopy made of synthetic material, finish velvet blackDimensions (mm): 175 x 65 x 65Delivery time: 2 Weeks

Installation component – Recessed canopy (Type C) – for interior use. For the mounting and electrical installation of a BEGA system pendant luminaire on straight or sloped ceilings with an inclination of 0 - 40°. The recessed ceiling installation frame is attached via 2 adjustable claws, arranged in a wedge formation. Synthetic 2-piece line connector (clamp part with screw cap) for braided coaxial cables. With internal pressure spring and contact wire. For connecting one cable pendant 2x0,5mm² or 2x0.75mm². External LED power supply unit (DALI controllable) included. Primary: 220-240V, 0/50-60Hz, DC 176-275V; Secondary: 700mA DC, 7-26W. Manufacturer: BEGAMaterial: recessed ceiling installation frame and metal hanger, canopy made of synthetic material, finish velvet blackDimensions (mm): Ø 90, recessed opening Ø 76, recessed depth required 50, power supply 120 x 55 x 20Delivery time: 2 Weeks

Installation component – Recessed canopy - Smart (Type CS) for interior use. With integrated Smart DALI-Controller for controlling the luminaire with the BEGA Smart app.For the electrical installation and mounting of a BEGA system pendant luminaire on straight or sloped ceilings with an inclination of 0 - 40°.The canopy modernises existing electrical installations. It introduces professional light control into any building using the manufacturer-independent DALI interface standard. even if only older, three-core cables are installed.It also acts as a link between all components of the BEGA Smart system and allows all DALI luminaires and BEGA Zigbee lamps to be controlled remotely. Once successfully installed, the device is configured in the BEGA Smart app on a smartphone. The BEGA Smart app is available free of charge for iOS and Android.The recessed ceiling installation frame is attached via 2 adjustable claws, arranged in a wedge formation. Synthetic 2-piece line connector (clamp part with screw cap) for braided coaxial cables. With internal pressure spring and contact wire For connecting one cable pendant 2x0,5mm² or 2x0.75mm². External LED power supply unit, supply voltage: 220-240V, 0/50-60Hz; Secondary: 700mA, 7-26W.The canopy is suitable for controlling the following operating modes:• On/off• Dimming• Group control• ScenariosData matrix code for convenient configuration via smartphone. Manufacturer: BEGAMaterial: recessed ceiling installation frame and metal hanger, canopy made of synthetic material, finish velvet blackDimensions (mm): Ø 90, recessed opening Ø 76, recessed depth required 60, power supply 145 x 45 x 22, DALI controller Ø 75 x 55Delivery time: 2 Weeks

Installation component – Track adapter (Type D) – for indoor use. For the integration of a BEGA system pendant luminaire in 3-phase EUROSTANDARD PLUS® surface-mounted and recessed track systems.Track adapter with integrated LED power supply unit, DALI controllable. Synthetic 2-piece line connector (clamp part with screw cap) for braided coaxial cables. With internal pressure spring and contact wire for the connection of a cable pendant 2x0.5mm² or 2x0.75mm².Track adapter-integrated LED power supply unit, DALI controllable; Primary: 220-240V 50/60Hz, Secondary: 700mA DC max. 29W. Manufacturer: BEGAMaterial: polycarbonate track adapter, metal adapter plate and luminaire hanger, canopy made of synthetic material, finish velvet blackDimensions (mm): 260 x 35 x 110Delivery time: 2 Weeks

Installation component – Surface-mounted canopy (Type A) – for interior use. For the mounting and electrical installation of a BEGA system pendant luminaire on any type of straight ceiling. Synthetic 2-piece line connector (clamp part with screw cap) for braided coaxial cables. With internal pressure spring and contact wire. For connecting one cable pendant 2x0,5mm² or 2x0.75mm². LED power supply unit (DALI controllable) in the canopy integrated. Primary: 220-240V, 0/50-60Hz, DC 176-275V; Secondary: 700mA DC, 7-26W. Manufacturer: BEGAMaterial: metal hanger and mounting plate, canopy made of synthetic material, finish velvet blackDimensions (mm): Ø 70 x 145Delivery time: 2 Weeks

Installation component – Surface-mounted canopy - Smart (Type B) for interior use. With integrated Smart DALI-Controller for controlling the luminaire with the BEGA Smart app.For the mounting and electrical installation of a BEGA system pendant luminaire on any type of straight ceiling.The canopy modernises existing electrical installations. It introduces professional light control into any building using the manufacturer-independent DALI interface standard. even if only older, three-core cables are installed.It also acts as a link between all components of the BEGA Smart system and allows all DALI luminaires and BEGA Zigbee lamps to be controlled remotely. Once successfully installed, the device is configured in the BEGA Smart app on a smartphone. The BEGA Smart app is available free of charge for iOS and Android.Synthetic 2-piece line connector (clamp part with screw cap) for braided coaxial cables. With internal pressure spring and contact wire. For connecting one cable pendant 2x0,5mm² or 2x0.75mm². LED power supply unit in the canopy integrated. Supply voltage: 220-240V, 0/50-60Hz; Secondary: 700mA, 7-26W.The canopy is suitable for controlling the following operating modes:• On/off• Dimming• Group control• ScenariosData matrix code for convenient configuration via smartphone. Manufacturer: BEGAMaterial: metal hanger and mounting plate, canopy made of synthetic material, finish velvet blackDimensions (mm): Ø 80 x 145Delivery time: 2 Weeks

Installation component – Surface-mounted canopy (Type B) – for interior use. For the mounting and electrical installation of a BEGA system pendant luminaire on straight or sloped ceilings with an inclination of 0 - 40°. Synthetic 2-piece line connector (clamp part with screw cap) for braided coaxial cables. With internal pressure spring and contact wire. For connecting one cable pendant 2x0,5mm² or 2x0.75mm². LED power supply unit (DALI controllable) in the canopy integrated. Primary: 220-240V, 0/50-60Hz, DC 176-275V; Secondary: 700mA DC, 7-26W. Manufacturer: BEGAMaterial: metal hanger and mounting plate, canopy made of synthetic material, finish velvet blackDimensions (mm): 175 x 65 x 65Delivery time: 2 Weeks

Installation component – Recessed canopy (Type C) – for interior use. For the mounting and electrical installation of a BEGA system pendant luminaire on straight or sloped ceilings with an inclination of 0 - 40°. The recessed ceiling installation frame is attached via 2 adjustable claws, arranged in a wedge formation. Synthetic 2-piece line connector (clamp part with screw cap) for braided coaxial cables. With internal pressure spring and contact wire. For connecting one cable pendant 2x0,5mm² or 2x0.75mm². External LED power supply unit (DALI controllable) included. Primary: 220-240V, 0/50-60Hz, DC 176-275V; Secondary: 700mA DC, 7-26W. Manufacturer: BEGAMaterial: recessed ceiling installation frame and metal hanger, canopy made of synthetic material, finish velvet blackDimensions (mm): Ø 90, recessed opening Ø 76, recessed depth required 50, power supply 120 x 55 x 20Delivery time: 2 Weeks

Installation component – Recessed canopy - Smart (Type CS) for interior use. With integrated Smart DALI-Controller for controlling the luminaire with the BEGA Smart app.For the electrical installation and mounting of a BEGA system pendant luminaire on straight or sloped ceilings with an inclination of 0 - 40°.The canopy modernises existing electrical installations. It introduces professional light control into any building using the manufacturer-independent DALI interface standard. even if only older, three-core cables are installed.It also acts as a link between all components of the BEGA Smart system and allows all DALI luminaires and BEGA Zigbee lamps to be controlled remotely. Once successfully installed, the device is configured in the BEGA Smart app on a smartphone. The BEGA Smart app is available free of charge for iOS and Android.The recessed ceiling installation frame is attached via 2 adjustable claws, arranged in a wedge formation. Synthetic 2-piece line connector (clamp part with screw cap) for braided coaxial cables. With internal pressure spring and contact wire For connecting one cable pendant 2x0,5mm² or 2x0.75mm². External LED power supply unit, supply voltage: 220-240V, 0/50-60Hz; Secondary: 700mA, 7-26W.The canopy is suitable for controlling the following operating modes:• On/off• Dimming• Group control• ScenariosData matrix code for convenient configuration via smartphone. Manufacturer: BEGAMaterial: recessed ceiling installation frame and metal hanger, canopy made of synthetic material, finish velvet blackDimensions (mm): Ø 90, recessed opening Ø 76, recessed depth required 60, power supply 145 x 45 x 22, DALI controller Ø 75 x 55Delivery time: 2 Weeks
