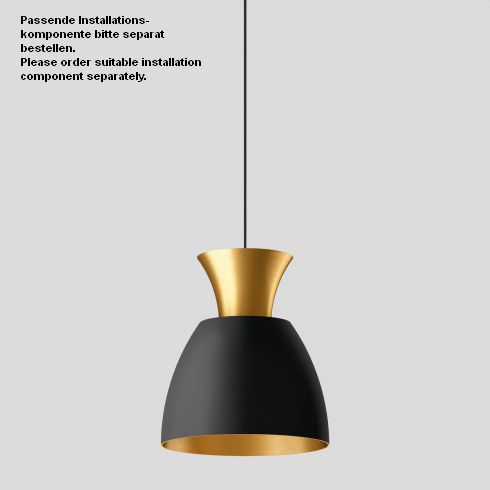

51230.4K3 - STUDIO LINE LED system pendant luminaire, brass
Product information "51230.4K3 - STUDIO LINE LED system pendant luminaire, brass"
Series >> STUDIO LINE <>
The luminaires of the STUDIO LINE series are characterised by the contrast between their outer finish and metallic inside colour, which is a particularly prominent feature of these pendant luminaires. The metallic luminaire housing shields the downward directed light. Part of the light is emitted upward, highlighting the shape of the luminaire and additionally emphasising the interplay of the surfaces. Luminaires for many interior design applications that offer economical and reliable LED technology as well as a fascinating interplay of various materials.
Structural conditions often call for pendant luminaires to be installed on different ceiling constructions. With BEGA system pendant luminaires, you can simply order the installation components that match your system pendant luminaires and which meet the requirements for operation of the luminaires and for the desired type of installation.
Manufacturer: BEGA
Material: aluminium luminaire housing, velvet black enamel finish, inside hue matt brass, flex suspension black, silicone diffusing lens, white synthetic reflector

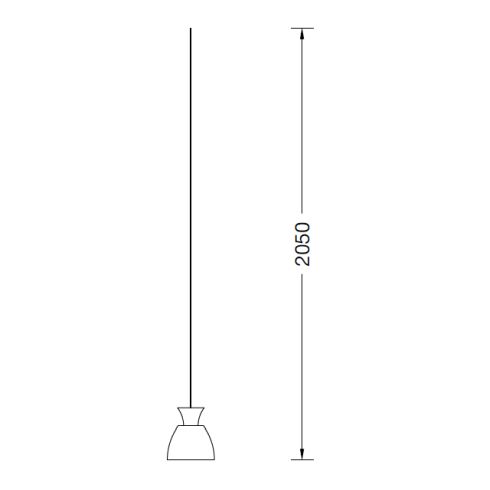

Dimensions (mm): Ø 230 x 250, suspension max. 2050
Illuminant: 27.8W LED 3000K
Luminous flux (Lumen): 1197
Scope of delivery: incl. illuminant
Delivery time: 2 Weeks
The luminaires of the STUDIO LINE series are characterised by the contrast between their outer finish and metallic inside colour, which is a particularly prominent feature of these pendant luminaires. The metallic luminaire housing shields the downward directed light. Part of the light is emitted upward, highlighting the shape of the luminaire and additionally emphasising the interplay of the surfaces. Luminaires for many interior design applications that offer economical and reliable LED technology as well as a fascinating interplay of various materials.
Structural conditions often call for pendant luminaires to be installed on different ceiling constructions. With BEGA system pendant luminaires, you can simply order the installation components that match your system pendant luminaires and which meet the requirements for operation of the luminaires and for the desired type of installation.
Manufacturer: BEGA
Material: aluminium luminaire housing, velvet black enamel finish, inside hue matt brass, flex suspension black, silicone diffusing lens, white synthetic reflector
Dimensions (mm): Ø 230 x 250, suspension max. 2050
Illuminant: 27.8W LED 3000K
Luminous flux (Lumen): 1197
Scope of delivery: incl. illuminant
Delivery time: 2 Weeks
Properties "51230.4K3 - STUDIO LINE LED system pendant luminaire, brass"
| Color: | black |
|---|---|
| Color rendering level: | 1A |
| Lichtfarbe: | warm white |
| Light distribution: | Pendant luminaire with direct and indirect light distribution |
| Protection class: | IP 20 |
| certifikation mark: | ENEC |
| energy efficiency class: | B |
Login
Zubehör
%
13240 - Surface-mounted canopy velvet black for BEGA system pendant luminaires
€149.00*
€164.82*
(9.6% saved)
Installation component – Surface-mounted canopy (Type A) – for interior use. For the mounting and electrical installation of a BEGA system pendant luminaire on any type of straight ceiling. Synthetic 2-piece line connector (clamp part with screw cap) for braided coaxial cables. With internal pressure spring and contact wire. For connecting one cable pendant 2x0,5mm² or 2x0.75mm². LED power supply unit (DALI controllable) in the canopy integrated. Primary: 220-240V, 0/50-60Hz, DC 176-275V; Secondary: 700mA DC, 7-26W. Manufacturer: BEGAMaterial: metal hanger and mounting plate, canopy made of synthetic material, finish velvet blackDimensions (mm): Ø 70 x 145Delivery time: 2 Weeks
%
13267 - Surface-mounted canopy Smart velvet black for BEGA system pendant luminaires
€434.00*
€485.40*
(10.59% saved)
Installation component – Surface-mounted canopy - Smart (Type B) for interior use. With integrated Smart DALI-Controller for controlling the luminaire with the BEGA Smart app.For the mounting and electrical installation of a BEGA system pendant luminaire on any type of straight ceiling.The canopy modernises existing electrical installations. It introduces professional light control into any building using the manufacturer-independent DALI interface standard. even if only older, three-core cables are installed.It also acts as a link between all components of the BEGA Smart system and allows all DALI luminaires and BEGA Zigbee lamps to be controlled remotely. Once successfully installed, the device is configured in the BEGA Smart app on a smartphone. The BEGA Smart app is available free of charge for iOS and Android.Synthetic 2-piece line connector (clamp part with screw cap) for braided coaxial cables. With internal pressure spring and contact wire. For connecting one cable pendant 2x0,5mm² or 2x0.75mm². LED power supply unit in the canopy integrated. Supply voltage: 220-240V, 0/50-60Hz; Secondary: 700mA, 7-26W.The canopy is suitable for controlling the following operating modes:• On/off• Dimming• Group control• ScenariosData matrix code for convenient configuration via smartphone. Manufacturer: BEGAMaterial: metal hanger and mounting plate, canopy made of synthetic material, finish velvet blackDimensions (mm): Ø 80 x 145Delivery time: 2 Weeks
%
13246 - Surface-mounted canopy velvet black for BEGA system pendant luminaires
€158.00*
€174.10*
(9.25% saved)
Installation component – Surface-mounted canopy (Type B) – for interior use. For the mounting and electrical installation of a BEGA system pendant luminaire on straight or sloped ceilings with an inclination of 0 - 40°. Synthetic 2-piece line connector (clamp part with screw cap) for braided coaxial cables. With internal pressure spring and contact wire. For connecting one cable pendant 2x0,5mm² or 2x0.75mm². LED power supply unit (DALI controllable) in the canopy integrated. Primary: 220-240V, 0/50-60Hz, DC 176-275V; Secondary: 700mA DC, 7-26W. Manufacturer: BEGAMaterial: metal hanger and mounting plate, canopy made of synthetic material, finish velvet blackDimensions (mm): 175 x 65 x 65Delivery time: 2 Weeks
%
13252 - Recessed canopy velvet black for BEGA system pendant luminaires
€173.00*
€191.11*
(9.48% saved)
Installation component – Recessed canopy (Type C) – for interior use. For the mounting and electrical installation of a BEGA system pendant luminaire on straight or sloped ceilings with an inclination of 0 - 40°. The recessed ceiling installation frame is attached via 2 adjustable claws, arranged in a wedge formation. Synthetic 2-piece line connector (clamp part with screw cap) for braided coaxial cables. With internal pressure spring and contact wire. For connecting one cable pendant 2x0,5mm² or 2x0.75mm². External LED power supply unit (DALI controllable) included. Primary: 220-240V, 0/50-60Hz, DC 176-275V; Secondary: 700mA DC, 7-26W. Manufacturer: BEGAMaterial: recessed ceiling installation frame and metal hanger, canopy made of synthetic material, finish velvet blackDimensions (mm): Ø 90, recessed opening Ø 76, recessed depth required 50, power supply 120 x 55 x 20Delivery time: 2 Weeks
%
13273 - Recessed canopy Smart velvet black for BEGA system pendant luminaires
€429.00*
€480.17*
(10.66% saved)
Installation component – Recessed canopy - Smart (Type CS) for interior use. With integrated Smart DALI-Controller for controlling the luminaire with the BEGA Smart app.For the electrical installation and mounting of a BEGA system pendant luminaire on straight or sloped ceilings with an inclination of 0 - 40°.The canopy modernises existing electrical installations. It introduces professional light control into any building using the manufacturer-independent DALI interface standard. even if only older, three-core cables are installed.It also acts as a link between all components of the BEGA Smart system and allows all DALI luminaires and BEGA Zigbee lamps to be controlled remotely. Once successfully installed, the device is configured in the BEGA Smart app on a smartphone. The BEGA Smart app is available free of charge for iOS and Android.The recessed ceiling installation frame is attached via 2 adjustable claws, arranged in a wedge formation. Synthetic 2-piece line connector (clamp part with screw cap) for braided coaxial cables. With internal pressure spring and contact wire For connecting one cable pendant 2x0,5mm² or 2x0.75mm². External LED power supply unit, supply voltage: 220-240V, 0/50-60Hz; Secondary: 700mA, 7-26W.The canopy is suitable for controlling the following operating modes:• On/off• Dimming• Group control• ScenariosData matrix code for convenient configuration via smartphone. Manufacturer: BEGAMaterial: recessed ceiling installation frame and metal hanger, canopy made of synthetic material, finish velvet blackDimensions (mm): Ø 90, recessed opening Ø 76, recessed depth required 60, power supply 145 x 45 x 22, DALI controller Ø 75 x 55Delivery time: 2 Weeks
%
13215 Track adapter velvet black for BEGA system pendant luminaires
€182.00*
€202.78*
(10.25% saved)
Installation component – Track adapter (Type D) – for indoor use. For the integration of a BEGA system pendant luminaire in 3-phase EUROSTANDARD PLUS® surface-mounted and recessed track systems.Track adapter with integrated LED power supply unit, DALI controllable. Synthetic 2-piece line connector (clamp part with screw cap) for braided coaxial cables. With internal pressure spring and contact wire for the connection of a cable pendant 2x0.5mm² or 2x0.75mm².Track adapter-integrated LED power supply unit, DALI controllable; Primary: 220-240V 50/60Hz, Secondary: 700mA DC max. 29W. Manufacturer: BEGAMaterial: polycarbonate track adapter, metal adapter plate and luminaire hanger, canopy made of synthetic material, finish velvet blackDimensions (mm): 260 x 35 x 110Delivery time: 2 Weeks
