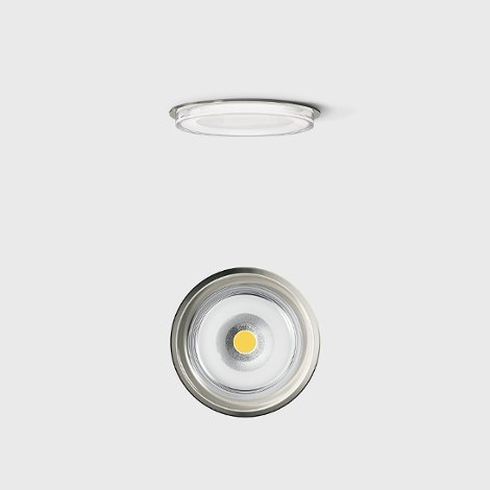

55941K3 Recessed ceiling luminaire · Downlight
Product information "55941K3 Recessed ceiling luminaire · Downlight"

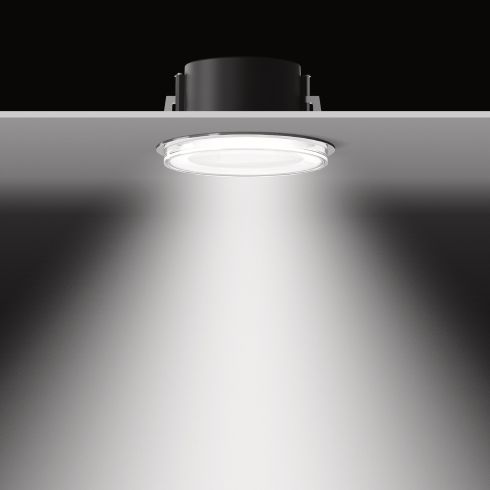

Recessed LED ceiling downlight for installation in suspended ceilings. Using the appropriate installation housing 10407 which can be ordered separately, the luminaire is also suitable for installation in concrete ceilings. The crystal glass projecting beyond the ceiling trim ring has a partial matt finish on the inside for optimum glare suppression and directs a part of the light sideways onto the ceiling. This creates additional visual comfort and a brilliant appearance through the intensity of the horizontal illuminance. Half beam angle 43°.

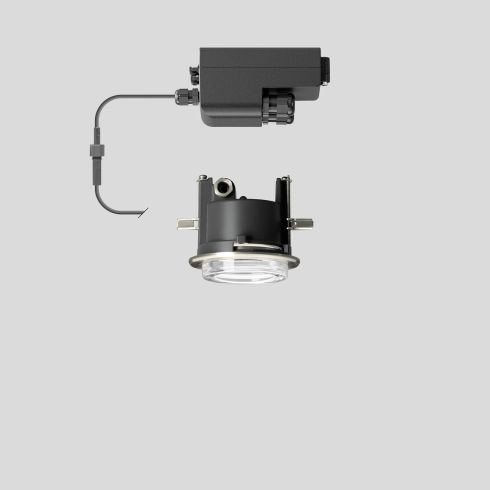

The external power supply unit (on/off) is included in the scope of delivery and is connected to the luminaire by means of a convenient plug connector. The electrical connection of the power supply unit can therefore be established before the final installation of the luminaire, if required by the customer.
Manufacturer: BEGA
Material: cast aluminium, aluminium and stainless steel, trim ring made of stainless steel, crystal glass, partially frosted, reflector made of pure anodised aluminium, silicone diffusing lens, BEGA Constant Optics ®

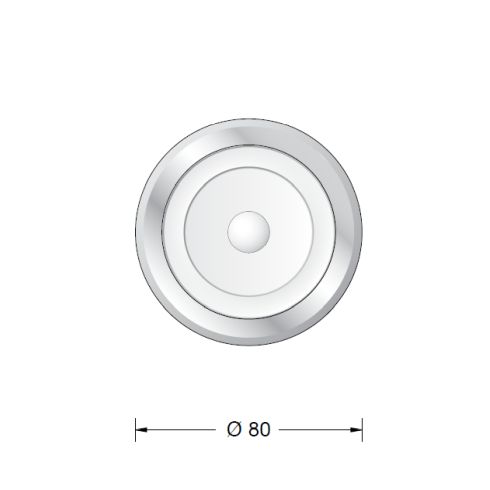

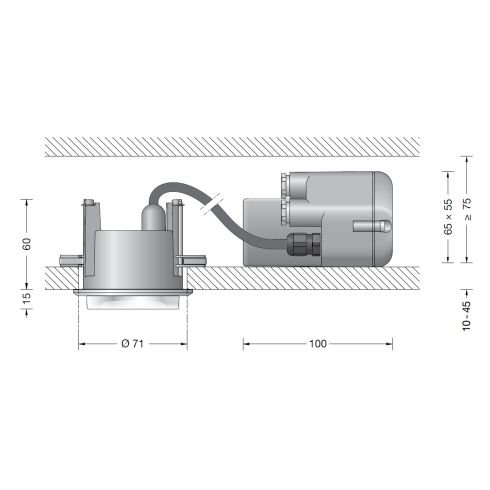

Dimensions (mm): Ø 80 x 90, ceiling aperture Ø 71, recessed depth required 75, power supply 100 x 65 x 55
Illuminant: 6W LED 3000K
Luminous flux (Lumen): 250
Scope of delivery: incl. illuminant
Delivery time: 1 Week
The external power supply unit (on/off) is included in the scope of delivery and is connected to the luminaire by means of a convenient plug connector. The electrical connection of the power supply unit can therefore be established before the final installation of the luminaire, if required by the customer.
Manufacturer: BEGA
Material: cast aluminium, aluminium and stainless steel, trim ring made of stainless steel, crystal glass, partially frosted, reflector made of pure anodised aluminium, silicone diffusing lens, BEGA Constant Optics ®
Dimensions (mm): Ø 80 x 90, ceiling aperture Ø 71, recessed depth required 75, power supply 100 x 65 x 55
Illuminant: 6W LED 3000K
Luminous flux (Lumen): 250
Scope of delivery: incl. illuminant
Delivery time: 1 Week
Properties "55941K3 Recessed ceiling luminaire · Downlight"
| Color: | stainless steel |
|---|---|
| Color rendering level: | 1B |
| Lichtfarbe: | warm white |
| Light distribution: | Ceiling luminaire with direct light distribution and additional light corona |
| Protection class: | IP 65 |
| certifikation mark: | ENEC |
| energy efficiency class: | B |
Login
Zubehör
%
Accessory - 10407 Installation housing
€106.00*
€116.26*
(8.83% saved)
Installation housing with a recess opening ø 71 mm for mounting recessed ceiling luminaires in concrete ceilings. 4 fixing straps with 1 hole ø 5mm each and 1 threaded rod with wing screw for fixing at the sheeting. 2 opposite insertions for installation conduits of up to ø 30mm. Centre-plate with concentric fixing hole ø 5mm to calibrate the luminaire. Manufacturer: BEGAMaterial: aluminiumDimensions (mm): Ø 170 x 125Delivery time: 1 Week
